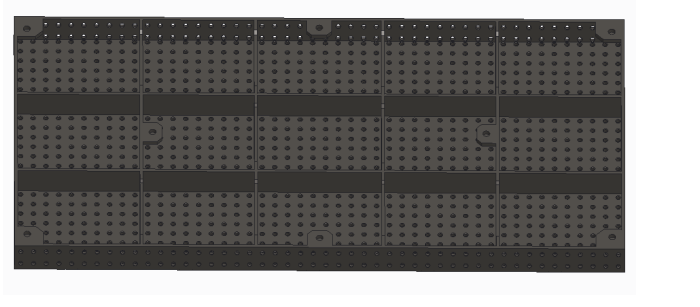

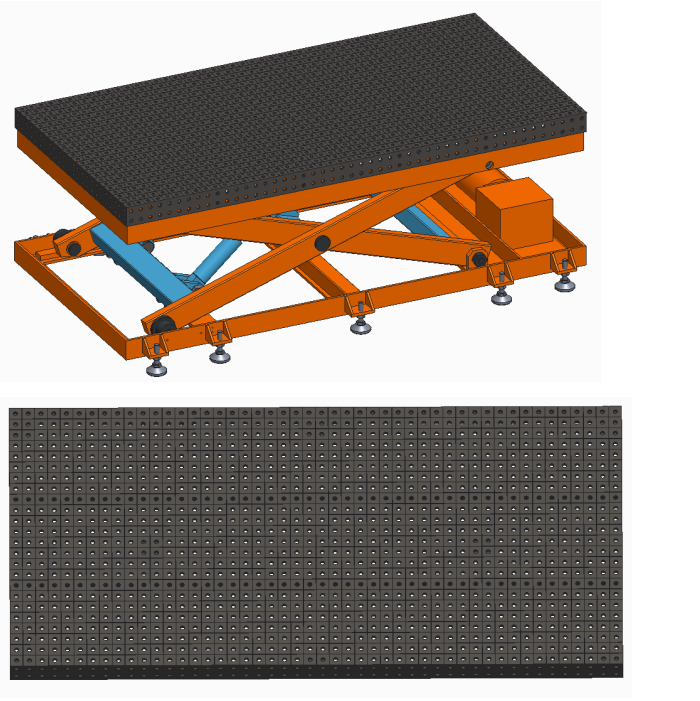

3D steel platform:
1. Material and material: steel Q355, with nitriding and hardening treatment added after finishing;
2. Vertical verticality: 0.1mm/100mm;
3. Flatness: 0.1mm/1000mm;

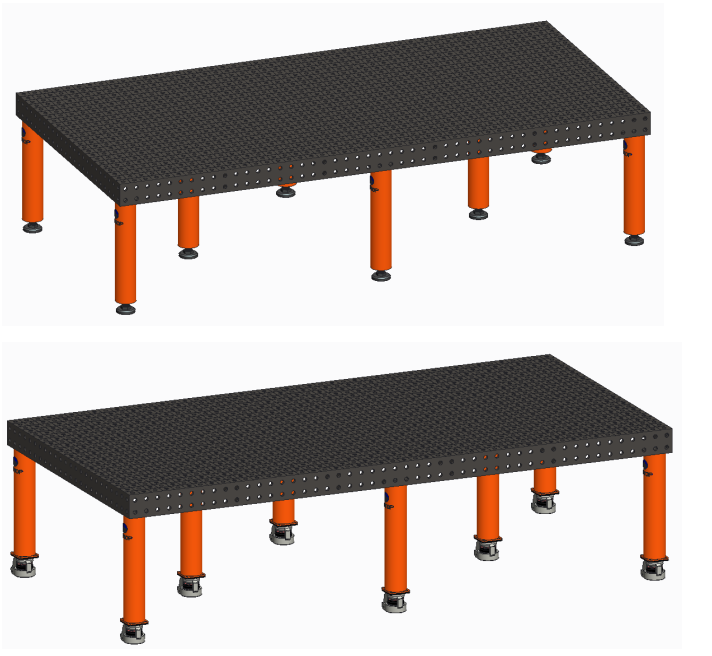

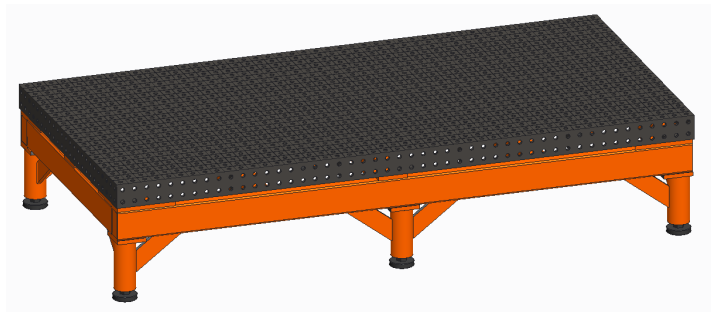

4. Load bearing capacity: Supporting leg: 1T/square meter; Frame type support: 2T/square meter;
5. Parallelism: 0.1mm/1000mm;
6. Surface roughness: Ra3.2;
7. Opening: φ 16.05—— φ 16.15mm;
8. Hole spacing: 50 ± 0.05mm;
9. Surface treatment: Add hard treatment to complete nitriding treatment;
10. Surface hardness: hv350-450
11. Platform panel thickness: 13 ± 1mm;
12. Large CNC machining centers can expand the entire surface of the platform to any 5 surfaces.
