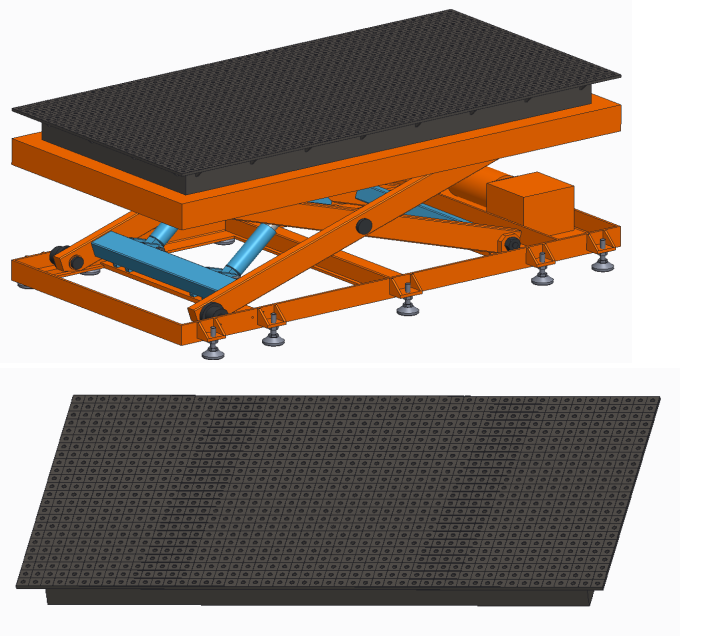

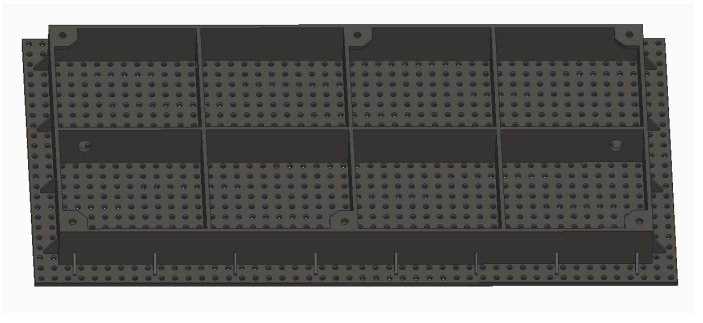

2D steel platform
1. Material and material: steel Q355, with nitriding and hardening treatment added after finishing;
2. Flatness: 0.1mm/1000mm;

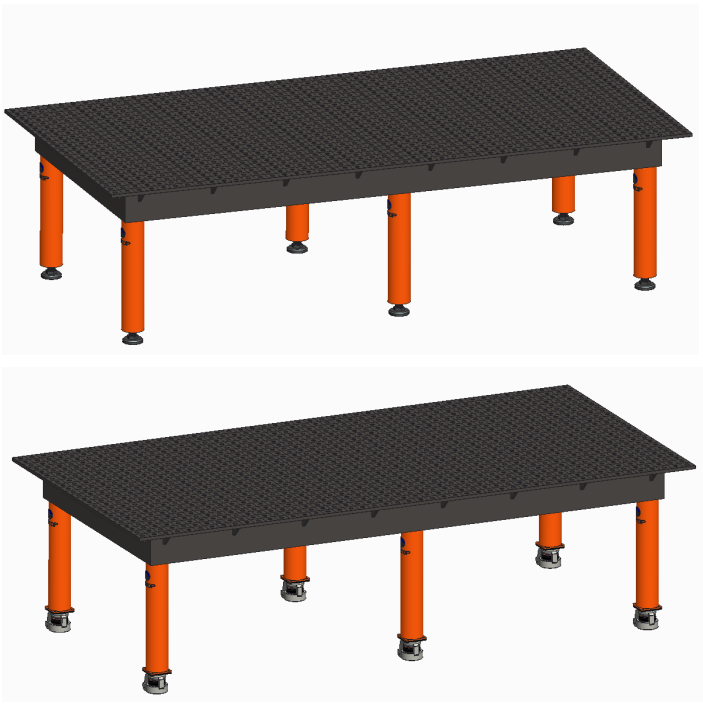

3. Load bearing capacity: Supporting leg: 1T/square meter; Frame type support: 2T/square meter;
4. Surface roughness: Ra3.2;
5. Opening: φ 16.05—— φ 16.15mm;
6. Hole spacing: 50 ± 0.05mm;
7. Surface treatment: After finishing, add nitrogen nitride hard treatment;
8. Surface hardness: hv350-450
9. Platform panel thickness: 13 ± 1mm;
The surface of a large gantry gantry platform in a CNC machining center can be expanded on any 5 surfaces as a whole.
