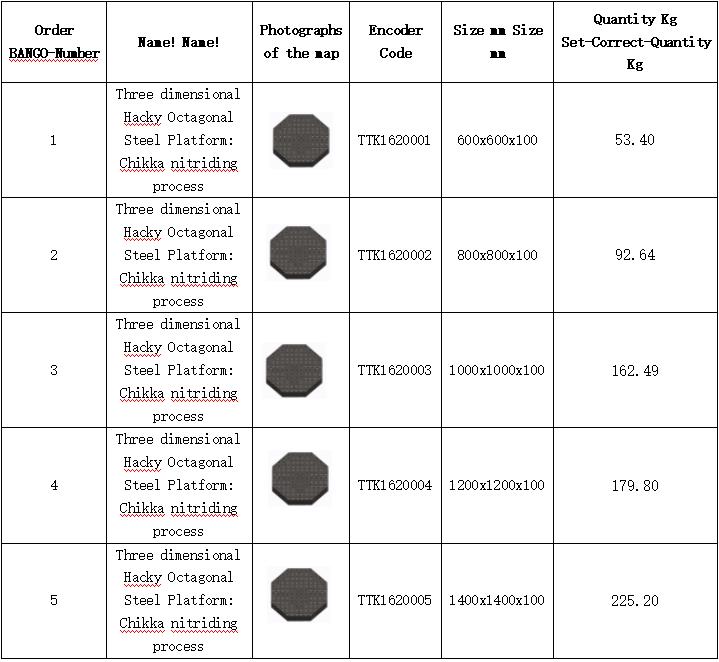

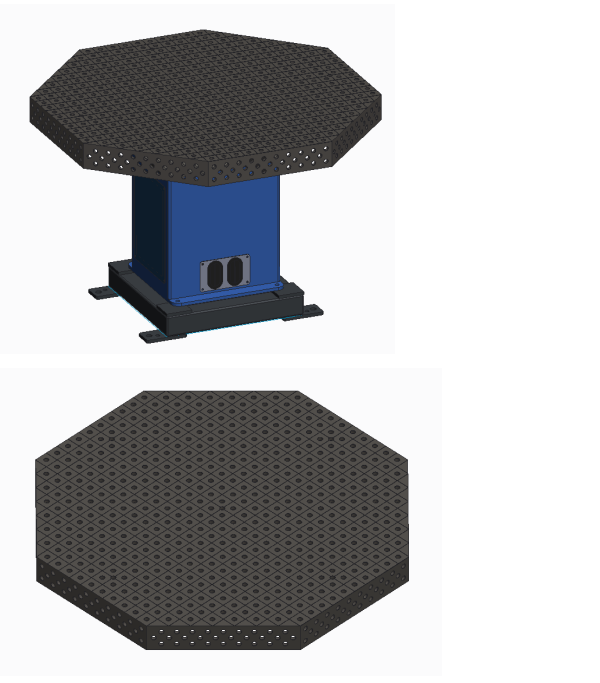

3D octagonal platform:

　　1. Material and material: steel Q355, with nitriding and hardening treatment added after finishing;

　　2. Vertical verticality: 0.1mm/100mm;

　　3. Flatness: 0.1mm/1000mm;

　　4. Load bearing capacity: The load designed for the displacement measuring machine;

　　5. Parallelism: 0.1mm/1000mm;

　　6. Surface roughness: Ra3.2;

　　7. Opening: φ 16.05—— φ 16.15mm;

　　8. Hole spacing: 50 ± 0.05mm;

　　9. Surface treatment: Add hard treatment to complete nitriding treatment;

　　10. Surface hardness: hv350-450

　　11. Platform panel thickness: 13 ± 1mm;

　　12. Large CNC machining centers can expand the entire surface of the platform to any 5 surfaces.
