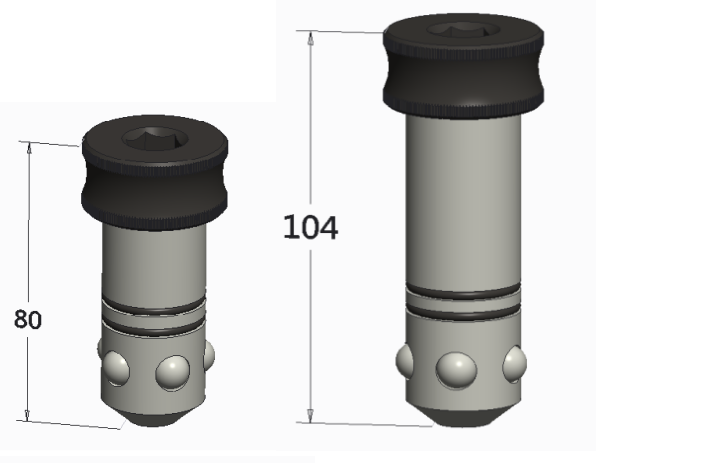

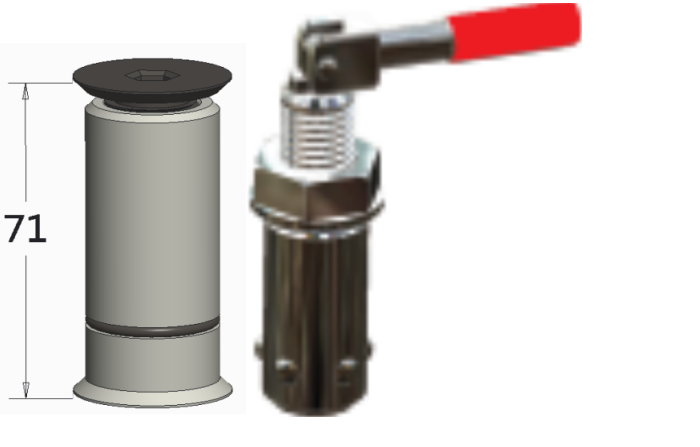

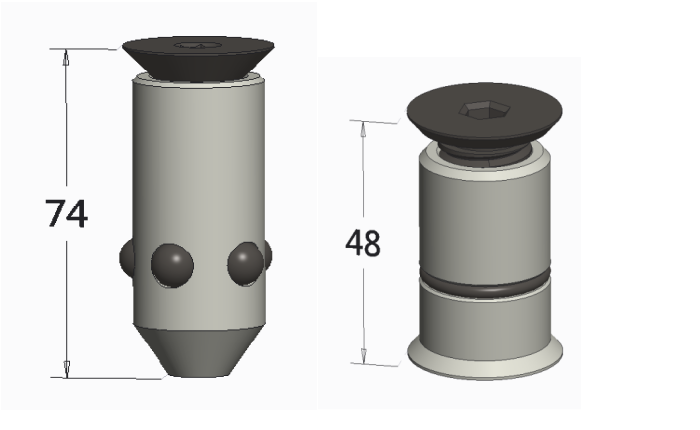

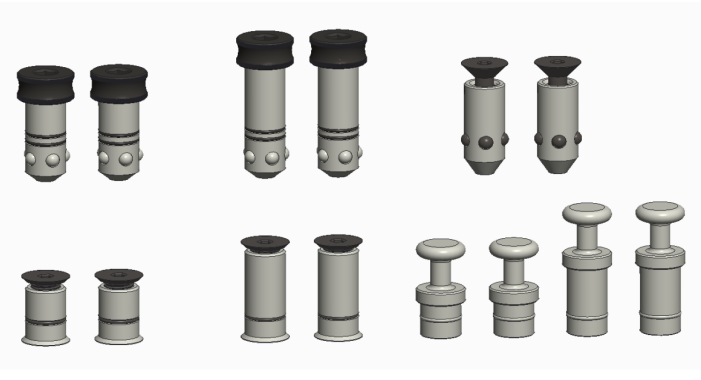

Lock Pin

　　1. Lock pin material: 45 # steel;

　　2. Shaft diameter: φ 27.95- φ 28.00mm;

　　3. Surface roughness: Ra0.8;

　　4. Surface treatment: quenching and tempering or hardening treatment;

　　5. Surface hardness: hv280-400;

　　6. Shear force: 25KN/cm ²;

　　7. Locking force: 600kg;

　　8. Clamping force: 3 tons.

　　9. Magnetic pins: aluminum and magnetic materials;

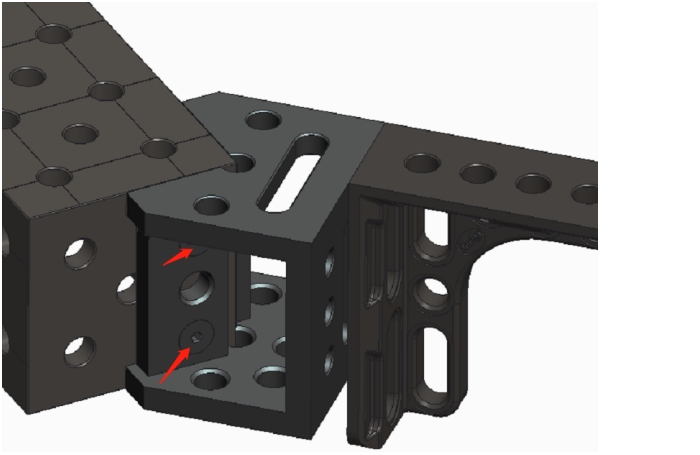

　　10. Use of magnetic pins: Combined with positioning holes. Adsorb the sheet from the side.
