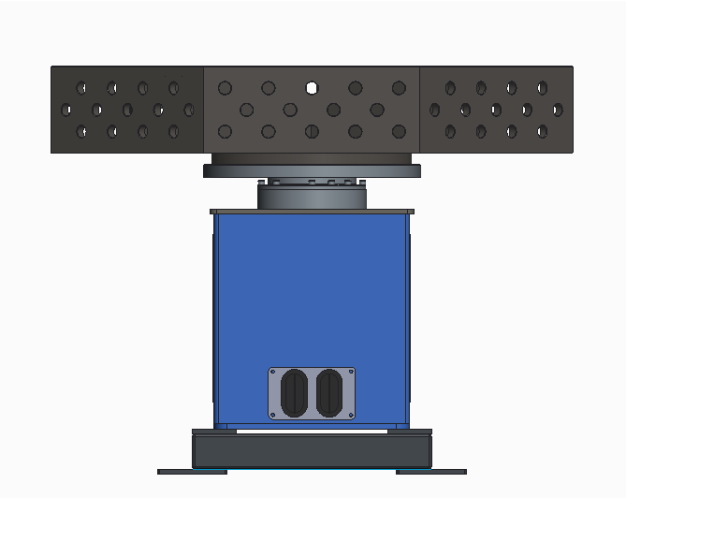

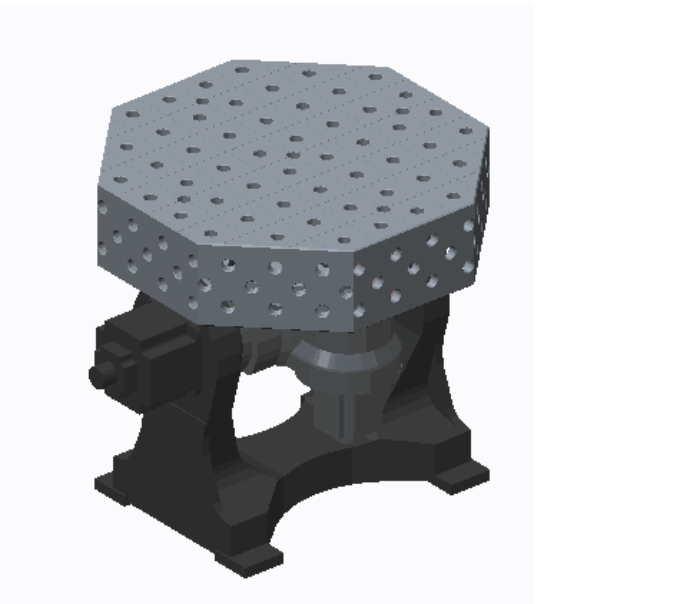

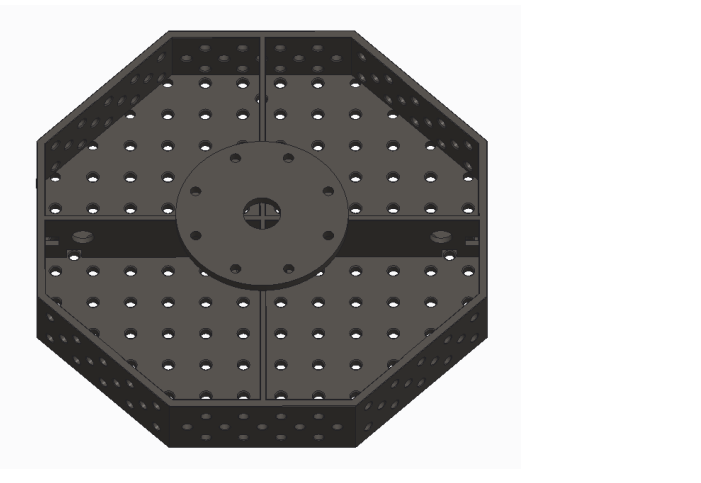

3D octagonal steel platform - nitriding treatment

　　1. Material and material: steel Q355, with nitriding and hardening treatment added after finishing;

　　2. Vertical verticality: 0.10mm/200mm;

　　3. Flatness: 0.10mm/1000mm;

　　4. Parallelism: 0.1mm/1000mm;

　　5. Load bearing capacity: According to the design of the displacement measuring machine, it can bear the load.

　　6. Surface roughness: Ra3.2;

　　7. Opening: φ 28.065—— φ 28.149mm;

　　8. Hole spacing: 100 ± 0.05mm;

　　9. Surface treatment: Add hard treatment to complete nitriding treatment;

　　10. Surface hardness: hv350-450

　　11. Tensile strength: 4900-6200kgf/cm2;

　　12. Yield strength: 345MPa;

　　13. Platform panel thickness: 25 ± 2mm;
