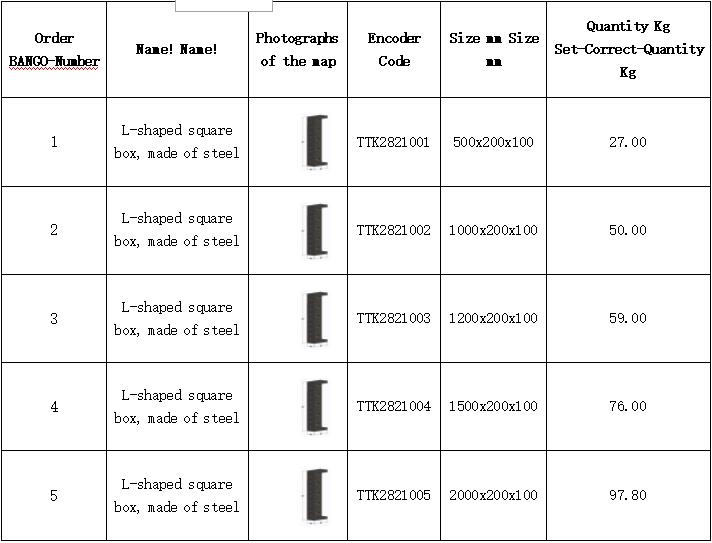

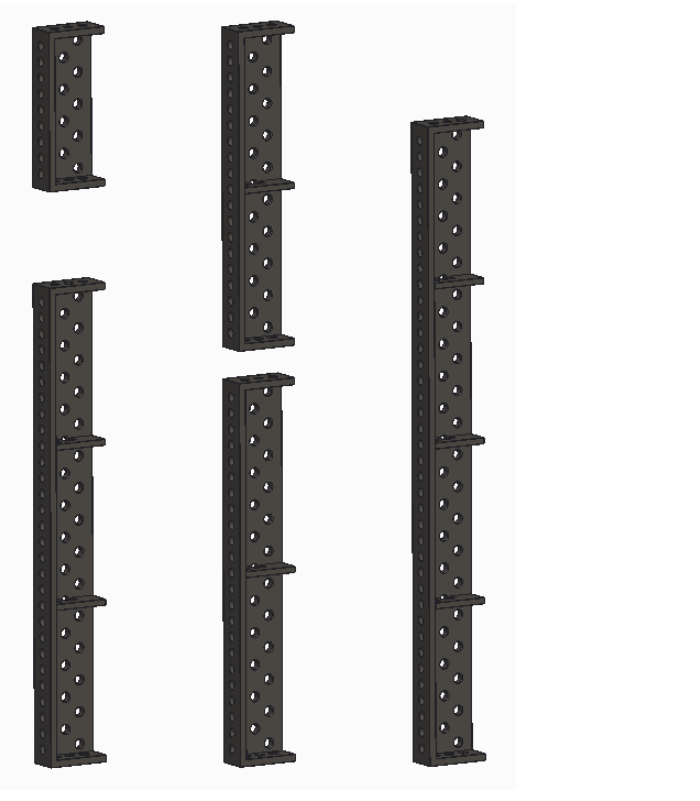

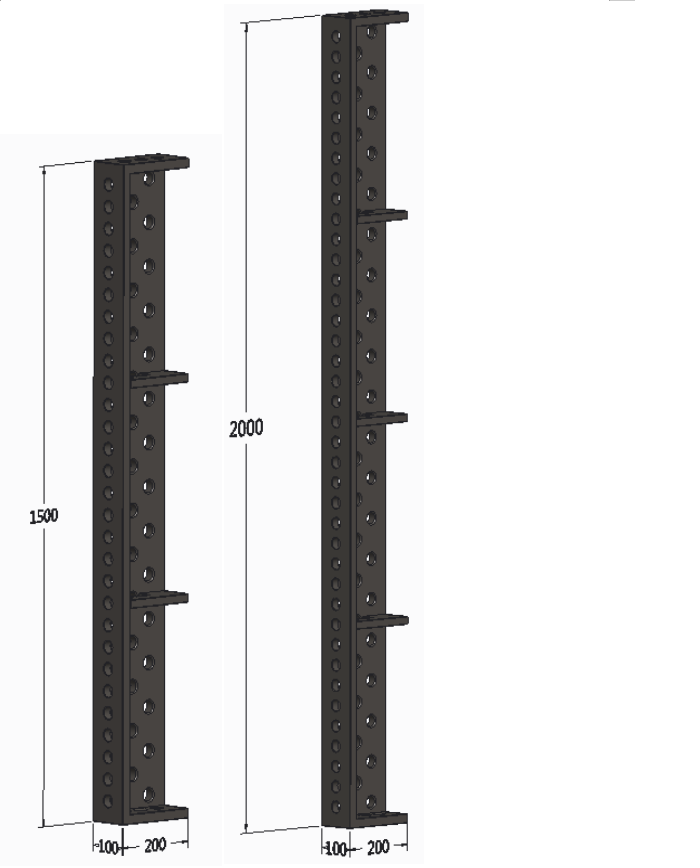

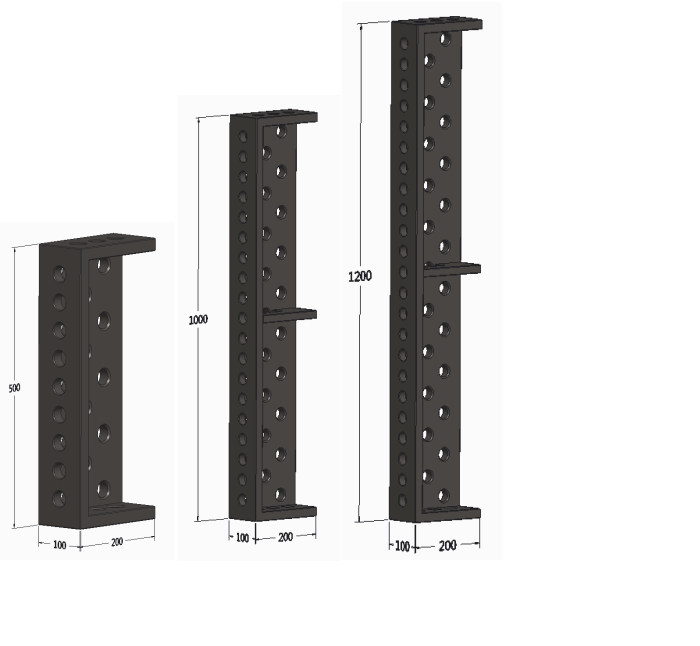

L-shaped square box - steel parts

　　1. Material: Steel Q355;

　　2. Vertical verticality: 0.10mm/200mm;

　　3. Flatness: 0.10mm/1000mm;

　　4. Load bearing capacity: 1000-3000kgf;

　　5. Parallelism: 0.1mm/1000mm;

　　6. Surface roughness: Ra3.2;

　　7. Opening: φ 28.065—— φ 28.149mm;

　　8. Hole spacing: 100 ± 0.05mm;

　　9. Surface treatment: There are three options available: 1. No surface treatment; 2. Blackhead treatment; 3. Nitriding treatment.

　　10. Tensile strength: 4900-6200kgf/cm2;

　　11. Yield strength: 345MPa;

　　12. Large CNC machining centers can expand the entire surface of the platform into any three surfaces.
