1. Material: Steel Q355, nitrided and hardened after finishing;
2. Verticality: 0.10mm/200mm;
3. Flatness: 0.10mm/1000mm;
4. Parallelism: 0.1mm/1000mm;

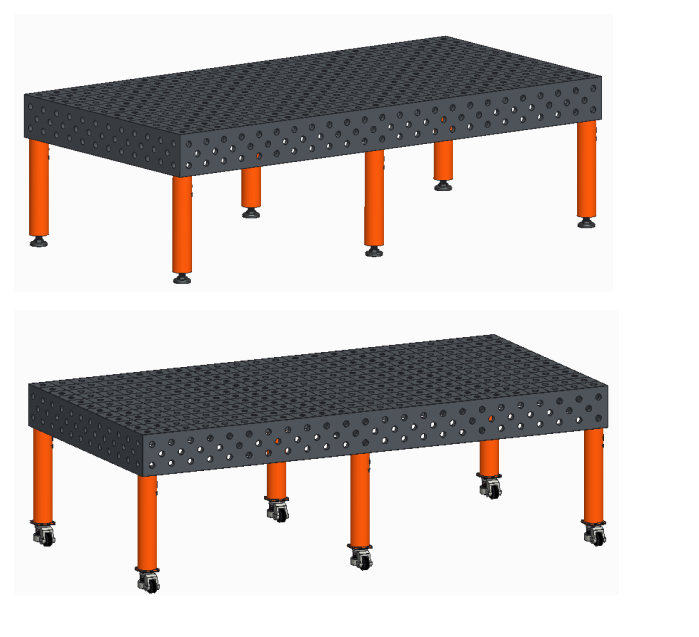

5. Load bearing capacity: Support leg pose: 2T/square meter; Frame type support: 3T/square meter;
6. Surface roughness: Ra3.2;
7. Aperture: φ 28.065—— φ 28.149mm;
8. Hole spacing: 100 ± 0.05mm;
9. Surface treatment: nitriding and hardening treatment after finishing;
10. Surface hardness: HV350-450
11. Tensile strength: 4900-6200kgf/cm2;
12. Yield strength: 345MPa;
13. Platform panel thickness: 25 ± 2mm;
14. The large gantry CNC machining center is integrated for processing and forming, and the platform surface is integral, with five surfaces that can be extended arbitrarily.
